Article 4: Capillary Pen Inking Instruction

To start the capillary ink flow in the pen, follow the procedure below. It is no longer necessary to use a ‘pen starter’ or ‘duckbill’ to prime the pen.

PRIMING PENS

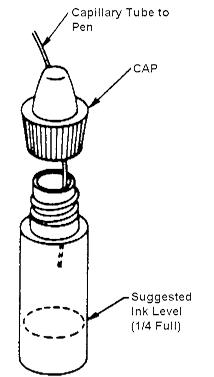

• Completely remove cap and capillary tube from bottle.
• Using a ink filler provided, extract ink from the ink supply bottle.
• Fill small bottle to approximately ¼ full. DO NOT OVERFILL. Overfilling the ink bottles will not improve ink flow and will increase the possibility of spillage during transit.
• Grasp the bottle by the cap as shown in (Step 1) and tighten by rotating bottle with free hand.
• Gently squeeze the bottle until the ink is forced to the end of the pen (Small bead of ink should form at  pen tip.)
• Keeping the bottle squeezed, slightly loosen the cap again by rotating the bottle (Step 2).
• Release the pressure on the bottle.
